The most flexible electro-hydraulic longhole drilling rig
for production drilling in underground mines.

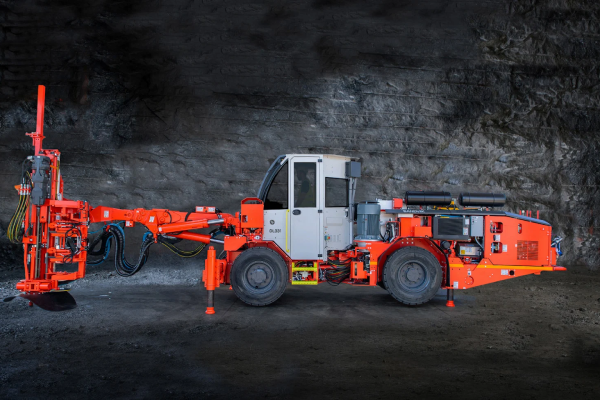

The Sandvik DL430-7 is the most flexible electro-hydraulic longhole drilling rig for production drilling in underground mines. The rig is capable of drilling 64 – 102 mm (2 ½" – 4") holes up to 40 meters.
The rig has been designed for ample vertical and horizontal coverage. The ZRU 1408R boom offers broad parallel drilling coverage, long boom extension, 360° rotation, and wide forward- and backward-tilt angle ranges, providing a wide drilling variety.
Instrumentation options allow maximum performance with superior drilling accuracy. Built-in and proven CAN-based technology on board allows the operator to set the unit for any rock conditions. The CAN technology also makes upgrading the automation level easy. The control system has a sophisticated fault-finding system that enables minimal downtime.
The unit is based on a proven jumbo carrier for high mobility. Both drilling and tramming are done from the operator's platform.
Rods and tubes compatibility
TMS ZRU, D, DD, DDS systems
Front stinger required
Needed for downholes
With outer compressed air feed
Two panels configuration
Enhanced operational flexibility
Advanced extraction system
With stabilizer
Rubber or PUR options
Enhanced safety protection
High voltage configuration
380 – 690 VAC only
Max 4 500 VA
Network voltage
Emission control system
Advanced emission reduction
Ready for deployment
Bottle only
6 nozzles configuration
6 nozzles configuration
15 bar with reel
With reel and handset
THR 2.5E model
60 m length
With pump, reel, and nozzle
Efficient lubrication system
Lincoln configuration
Environmentally friendly option
For fuel
For fuel, transmission, engine, and hydraulic oil
1 kW (recommended with data in cold environment)
International compliance
